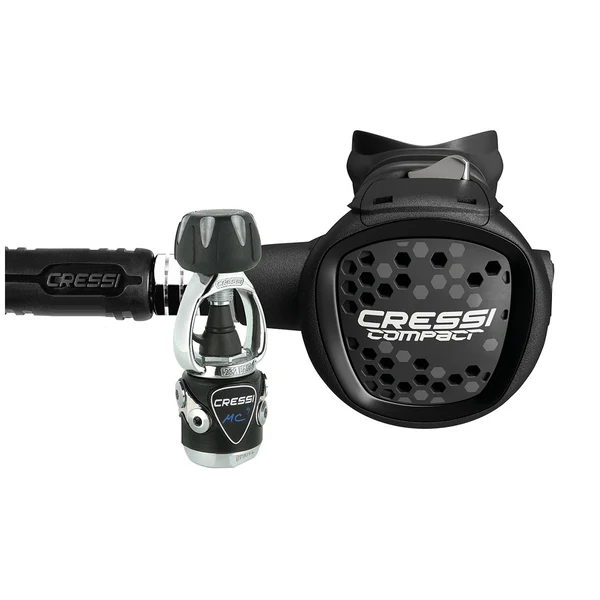

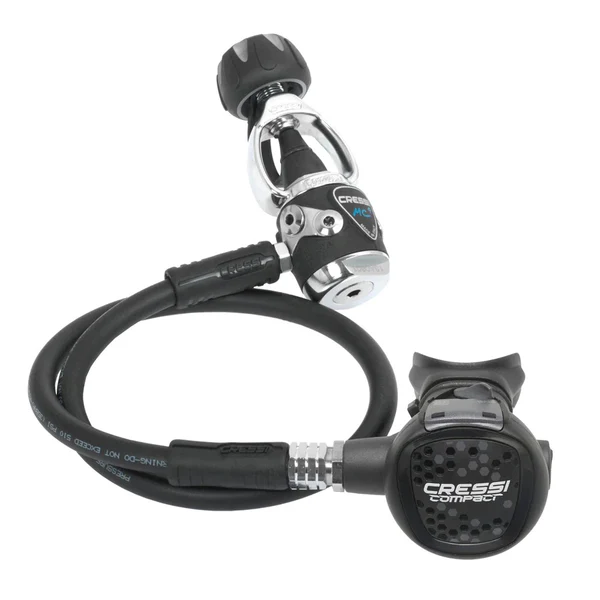

Mc9 + Compact Regulator INT

This premiere travel regulator packs maximum performance into minimum space.
A true featherweight second stage, the Compact is built from lightweight techno-polymers to eliminate jaw fatigue.
Easy to pack and easy to dive, the Compact includes dive/pre-dive Venturi switch
for managing freeflow and maximizing performance at depth.
TECHNICAL FEATURES 1ST STAGE :
– Balanced diaphragm (seal chamber for MC9SC).
– 2 outlets HP 7/16 UNF.
– 4 outlets MP 3/8 UNF.
– Service pressure: 300 bar (4350 psi) DIN version.
232 bar (3365 psi) Yoke version.
– Calibration pressure: 10 Bar.
– Brass body Electroless Nickel plated.
– High capacity conical filter electroless nickel plated.
– Aisi 316 removable nozzle.
– Hyper-balancing.
– Anti-pressure drop pneumatic spring.
– Setting spring: stainless steel with micropeening treatment.
– Replaceable cylinder with anti-friction.
and anti-corrosion properties.
– Elastomer protector.
– Flow rate: 4500 l/min.
– Yoke version weight: 590 gr.
– Din version weight: 450 gr.
TECHNICAL FEATURES 2ND STAGE :
– Downstream system.
– Adjustable venturi effect.
– Patented antifriction lever.
– Big purge button.
– Anti-scratch surface.
– Bayonet-type cap holder with security lock.
– Removable exhaust tee.
– Weight without hose: 135 gr.
COMBINATION PERFORMANCE :
– Average Cracking effort 6 mbar.
– Average breathing effort 1 J/l.
